120 series BLDC motor
120 series BLDC motor Display pictures2
Feedback

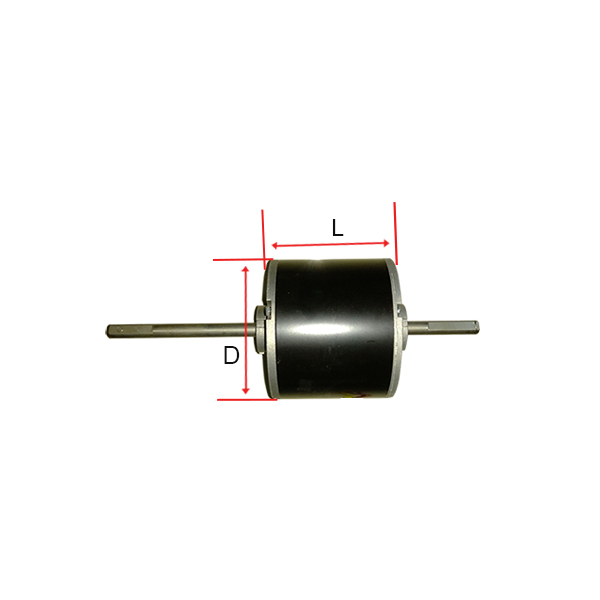

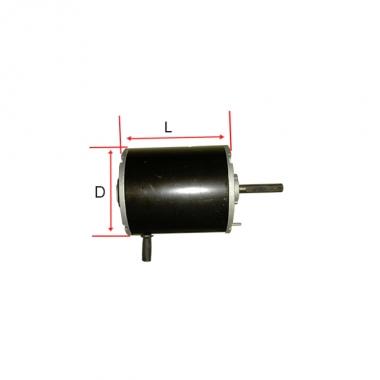

Dimensions:

L (mm)

D (mm)

104

∮124

Range of voltage: 100-120Vac/208-240Vac

Range of power:

RPM

900

1000

1100

1200

1300

1400

1500

1600

Output (W)

80

90

100

130

150

170

190

200

EFF %

70

73

75

78

≧80

≧80

≧80

≧80



Features:

1, Direct replace AC motor, do not require to modify the main control board of the air-conditioning.

2, Wide speed range. According to customers requirement from 900-3000RPM

3, Speed regulation mode: 208-240Vac/100-120Vac, 24Vac and 0-10V VSP

4, Speed stalls: 4 speeds ;  Control method: Constant torque and Constant speed.
